KRWWith the growing of cars, urban roads become more congested, driving to work is a trouble thing now. If you drove tired, scared or serious of traffic accident, you may wish to buy a electric bike riding to work and you will find a kind of fantastic feeling.
Electric beach fat bike with pedal assistant is just add the battery and motor for the bicycle, many parts are common with the fat tire bicycle, so it's easy to repair or buy accessories, but also with a lot of advantages: safer, more freedom, more saving money, more easily, more healthy and more environmentally.
This model of 48v 13Ah lithium battery 1000w rear drive BLDC brushless geared hub motor electric beach fat bike with strong frame, good functions and light weight, most of the parts are branded: SUMSUNG/LG/PANASONIC cells li-ion battery, PROMAX aluminum alloy handle bar and ZOOM adjustable stem, CST/MAXXIS/INNOVA/KENDA tire, Prowheel crank, WELLGO pedal, TEKTRO disc/hydraulic brake system, MOZO/RST/KKE/DNM/SRAM aluminum alloy suspension front fork, ROCKSHOCK, SR saddle and SHIMANO sets improve its quality greatly.
Main Parameters:
Model: AbleBike A6
Style: Electric Fat tire Bike
Size: 26"x4.0"
Color: Black, White, Yellow, Blue, Green, Grey, Orange and so on.
Electronics:
Motor: 48V 1000W rear drive brushless gearless hub motor with 85Nm of torque, 6:1 planetary gear reduction
Battery: 48V 13Ah (624Wh) lithium battery rated for 800 charge cycles (30A battery protection board current for 750w and 1000w, 40A for 1500w and 2000w motor)
Charger: 48V 2 Amps smart charger, operates AC 100-240v 50-60Hz (Small size, low temperature, no holes, more protection)
Display: SW900 LCD display, USB ports of 5V 1 Amp is optional
Controller: 48V 25A for 1000W motor
Throttle: IPX5 waterproof grade, 3 core wiring, 5V working voltage and 0.8-4.2V output voltage of thumb throttle(Size: 60x30x47.5mm), half-twist throttle and twist throttle(Size: 69x69x30mm) is optional according to the customer's requirements
Lights: Front and rear LED lights
Pedal Assist: 1:1 intelligent 5-level pedal assist with 12 magnets cadence sensor

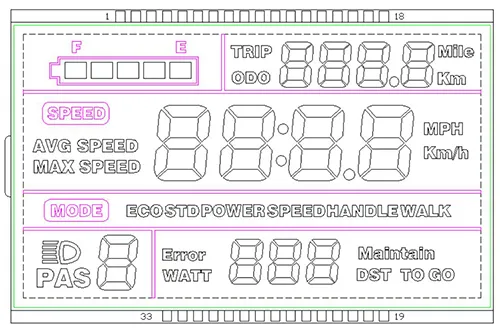

Central Display SW900 Function Indication:
| 1. Power on/off 2. Battery indicator 3. Ridng distance & unit change 4. 5-speed pedal assist level 5. Speed & unit change 6. Max. speed 7. AVG speed 8. Head light switch control 9. 6km cruise control 10. Error code |
 |
Optional Choice:
Different models of rear motor driving system:
| Model No. | RM G062.750.D | RM G062.1000.D | KS G2003 1500R | KS G2003 2000R |
| Rated Power (W) | 750 | 1000 | 1500 | 2000 |
| Wheel Size (inch) | 26/700C/28 | 26/700C/28 | 26/700C/28 | 26/700C/28 |
| Construction | gear | gear | gearless | gearless |
| Rated Voltage (DCV) | 48/52 | 48/52 | 48/52/60 | 48/52/60/72 |
| RPM | 350 | 400 | 500 | 600 |
| Max. Torque (N.m) | 80 | 85 | 90 | 95 |
| Efficiency (%) | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 |
| Weight (KG) | 4.1 | 4.3 | 7.2 | 7.8 |
| Noise Grade (dB) | < 55 | < 55 | < 60 | < 60 |
| Operating Temperature (℃) | -20 - 45 | -20 - 45 | -20 - 45 | -20 - 45 |
| Installation Widths (mm / OLD) | 175 | 175 | 180 | 180 |
| Spoke Specifification | 36H*12G | 36H*12G | 36H*12G | 36H*12G |
| IP Level | 65 | 65 | 54 | 54 |
| Color | Black / Silver | Black / Silver | Black | Black |
Components:
Frame: 6061 T6 aluminum alloy
Rims: Double wall 36H aluminum alloy
Hub: JOYTECH D041DSE F aluminum alloy
Front Fork: GT-MARK adjustment full aluminum alloy suspension front fork, 135mm hub width
Headset: Gineyea GH-20
Handlebar: Promax HB3188（31.8 680mm）
Stem: Promax MA-50（60mm）
Seatpost: Promax SP-2003（27.2）
Seat clamp: Promax 327Q（31.8）
BB(Bottom Bracket) parts: Gineyea BB-96（100mm)
Brake system: Tektro HD-E350 hydraulic brake system with brake levers, 180mm rotors
Shifter: 7-speed Shimano SL-TX50-7R right side thumb shifter
Freewheel: 7-speed Shimano MF-TZ500-7 with 14-28T gears
Derailleur: 7-speed Shimano Tourney Rear Derailleur RD-TY500
Chain: KMC X8EPT professional competition rust resistant chains
Crank: Prowheel SOLID-246AA-F (3/32*46T*170mm aluminum alloy 6061-T6 and steel)
Saddle & grips: KNUS7035 Comfortable leather saddle and grips (the PU foam is finished on the cover of the saddle shell)
Pedals: Wellgo B087DU with reflectors (Size: 108x102x28.8mm; Weight: 460g; Body: cast aluminum; Axis: boron steel)
Tires: KENDA K1151 26"X4.0" with inner tube and nylon protective belt
Optional Choice:
Different models of Tektro brake system:
MD-M300 |
HD-E350 |
HD-E725 |
| SYSTEM cable actuated mechanical disc brake actuated with linear pull brake levers |
SYSTEM open system sensor control design easy installation, adjustment, maintenance |
SYSTEM high power, controllable braking open system, 4 piston sensor control design easy installation, adjustment, maintenance |
| WEIGHT front wheel - 171 grams rear wheel - 171 grams (excludes rotor, adapter, mounting bolts) |
WEIGHT front wheel - 302 grams rear wheel - 322 grams (excludes rotor, adapter, mounting bolts) |
WEIGHT front wheel - 261 grams rear wheel - 281 grams (excludes rotor, adapter, mounting bolts) |
| ROTOR wave type (TR160-24) Diameter: Φ160mm Weight: 129 grams Φ180mm / Φ203mm available |
ROTOR round type (TR160-24) high heat dispersion, heat tolerance Diameter: Φ160mm Weight: 129 grams Φ180mm / Φ203mm available |
ROTOR wave type (TR180-16) high heat dispersion, heat tolerance Diameter: Φ180mm Φ203mm available stiffer rotor for E-MTB |
| CALIPER single-piece aluminum body automatic caliper centering (A.C.C) pads adjustment automatic pad angle adjustment via floating plates Finish: black |
CALIPER forged aluminum body Finish: black |
CALIPER 4 piston forged aluminum body easy pads replacement from top Finish: black |
| LEVER (CL525-RS) integrated bell design cast aluminum lever & bracket 2 finger lever blade for use with linear pull brakes and rapidfire shifters reach adjustment Standard finish: satin silver brake / black bracket Weight: 111 grams / piece AC version - for use with roller/canti brakes available |
LEVER cast aluminum lever & bracket reach adjustment 2 pieces bracket 3 finger blade Finish: black |
LEVER forge lever / cast aluminum bracket I-Spec II & Matchmaker compatible reach adjustment 2 pieces hinged bracket 2 finger blade Finish: black |
| PADS organic compound metal ceramic compound available |
PADS metal ceramic compound easy replacement |
PADS high performance metal ceramic compound upload replacement available sintered pad Q11TS |
Performance:
Speed: 42km/h(26mph) Max. speed
Range: 25-45+ Miles
Charging Time: 4-6 hours, depend on the battery status
Bike Weight: 70lbs
Max. Load Capacity: 300lbs
Recommended Rider Heights: 5'4" - 6'2"
Packing:
L*W*H:160cm*40cm*85cm
Packing Material: 7-layer carton packing with foam inside to protect the ebike when shipping
We usually use FedEx, DHL or EMS to ship the hub motor, mid motor, ebike kit or the whole rear drive BLDC brushless geared hub motor electric fat bike to the customers all around the world for it's easy and fast but with cheapper cost; and payments can be via Credit Crad, Paypal Checkout, WestUnion or Wire Transfer, it's convenient for the customer to buy in a easy way.
Please leave us correct and exactly consignee, phone number and shipping address, so that we can send you the parcel in a right way. Thanks!
